INTERNATIONAL FLOW TECHNOLOGIES (IFT)
We at IFT have been serving the Americas and the World for over 37+ years by providing pipeline solutions. Our services include emergency responses requiring turn-key bypassing of pipelines, hottaps, wettaps, pressure taps, linestops, stopples, pipe freeze plugs, insert valve installation and many othere mechanical services. IFT is capable of handling modifications to most pipeline systems. Our specialty is replacing and adding new valves to existing systems, without interrupting service, and hot tapping butterfly valves. These solutions are led by a team of technicians using innovative techniques that have helped define the industry.

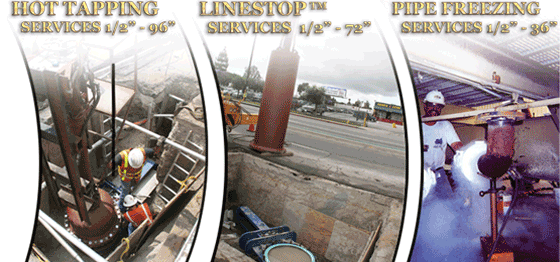

* Hot Tapping Services
* Line Stopping Services
* Pipe Freezing Services
* Valve Inserting Services
* Emergency response for turn-key by-passing of pipelines
48" Hottap for a 72" Linestop with a 48" By-Pass Featured in this video
Job Specifics:1 - Hottap 72" x 48" Pre Stressed Concrete Pipeline (PCCP) with By Pass
1 - 72" x 48" Hottap Fitting for PCCP (apx. 40-PSI)(JCM 445 Shop Coated with Epoxy Coated Water Way)
1 - Installation of Hot Tap Fitting (Others to Provide 48" Gate Valve with Installation and Provide Support of Valve)
1 - Pressure Test of Assembly & 48" Hottap
1 - 48" Loaner Valve
1 - Loaner 48" Knife Gate for Bypass and Removed Under Pressure after By Pass is Terminated. Includes Setting 48" Completion Plug and Supply Blind Flange with Zinc Plated NBG Sets.
1 - 72" Linestop Fitting for PCCP with 72" Inside Diameter (ID) (40 PSI or less) Less than 6 FPS (JCM 445 Shop Coated with Epoxy Coated Water Way)
1 - Hot Tap to Allow for Linestop Entry
1 - Insertion of 72" Linestop
1 - 4'' Saddle with Gate Valve and Tap for Blow Down and Equalizing Pressure to Remove Linestops
1 - Removal of Linestop, Install Completion Plug and Blind Flange Linestop Held for (7) days.
Opening hours
Mon. - Friday
6:00 am - 4:30 PM PST
* Pacific Standard Time
Emergencies Call
1-800-221-3332
* If you reach a voicemail, listen to the message and call the number listed.
Wet, Pressure, Hot Tapping Services
LINSTOP Services
Pipeline By-Passing Services
Wet, Pressure, Hot Tapping Services
Pipeline Freeze Plugging Services
Valve Installation Services
WALL, TANK, VESSEL TAPPING
-
Pipeline Hottap Services
1/2" - 96" on water, gas, steam, air, & chemicals. Available for any type of pipe, with turnkey service available. IFT specializes in large diameter connections. -
Pipe Linestop Services
Pipeline linestops isolate a section of pipe, stopping its flow. IFT provides the most advanced linestop services available today! Sizes from 1/2" - 84" on any type of pipeline. -
Pipeline Bypass Services
IFT can bypass a section of pipe, without an interruption of its flow. IFT provides the most advanced line stopping and bypassing service available today! Sizes from 1/2" - 48" on any type of pipeline. -
Pipeline Freeze Plugs
Using liquid nitrogen, pipe freeze plugging is a simple, cost-effective method to perform pipeline maintenance or pipe modifications without draining to form one or more solid freeze plugs.
